Topic: My D.I.Y. Cobra Drift Anchor  (Read 81154 times)

0 Members and 1 Guest are viewing this topic.

Spot

  • Administrator
  • Sturgeon
  • *****
  • Cabby Strong!
  • Location: Hillsboro
  • Date Registered: Jul 2007
  • Posts: 5952
Before becoming a yak man, my favorite fishing was done on coastal streams in the Fall and Winter.  So, using my kayaks to access these waters seemed only natural.  Necessity being the mother that it is, Fall found me knee deep in the manufacture of a drift anchor for my Cobra Fish-n-Dive.


I leveraged off the groundwork laid by our brothers at NCKA, settling on a design similar in concept to the PVC anchor system by mickfish.   His design fit my needs to a T: Removable, non-penetrative and simple.  But, the strength of the structure and potential for drag and abrasion of the anchor line left room for improvisation.
Being that I'm a cheap bastard, the issue of strength was rendered mute when I found a piece of scrapped Unistrut P4100 (the flatter variety).  Sure it was a little heavy at 5lbs but it offered multiple ways of attaching hardware and was rated to over 1800lbs at 18 unbraced inches.


Materials List:

Construction:
~ 5 feet of Unistrut P4100
4x Stainless Screws with lockwashers and nuts
3x Stainless Eye bolts with lockwashers and nuts
1x Single wheel pulley

Installation:
2x 2 inch J-bolts with large flat washers and nuts
1x 5 inch J-bolt with large 2 flat washers, 1 nut and 1 wingnut
2.5” x 4” piece of 1” closed cell foam

Tools:
Bandsaw
Hacksaw
Power Drill
Rasp

My 1st task was to cut two pieces from the unistrut.  A short piece which would act as a crossmember to counter the lever forces applied to the main strut and a longer piece that would bear the weight of the anchor and keep it far enough away so as to avoid contact with the kayak when not in use.


Next, I notched and flattened one side of the crossmember creating a pocket that would receive the main strut. Then, I notched the joining end of the main strut so it would fit the contour of the pocket in the crossmember. Once this was completed, the two pieces were fitted together, checked for proper alignment and fastened with two screws.


Time to add the hardware:
I chose to place the pulley on the bottom of the assembly and feed the anchor line down Through one of the regular slots in the unistrut.  This was done to avoid any potential for the line hopping the pulley.


The 3 stainless eye bolts were then installed with nylock nuts and washers.  The 1st eye bolt guides the rope through the hole to the pulley, the 2nd guides the rope through a turn  to the 3rd eye bolt and the 3rd guides the rope around the milk crate.  (The 3rd was moved over even farther after the test run.)  Surprisingly, this arrangement creates very little friction.

Finally, it's time to attach this assembly to the yak.  The attachment was made very simply.  A 5” J-Bolt was calibrated with a nut and large washer to hold the main strut at the correct height.  Once in place (hooked through the rear eyelet), a large washer and wing nut were used on the opposite side to sandwich the main strut, keeping it at the right height and minimizing shift.


A small square of closed cell foam was placed between the main strut and the kayak to reduce compression and impact stresses.  Smaller J-Bolts were used at the ends of the crossmember to secure it to eyelets at the back of the rear well.  An unintended benefit of using unistrut is that the crossmember straddles the eyelets perfectly, eliminating contact with the kayak itself.


And voila!  My need for a drift anchor is fulfilled.


Twenty years from now you will be more disappointed by the things you didn't do than by the ones you did do. So throw off the bowlines. Sail away from the safe harbor. Catch the trade winds in your sails. Explore. Dream. Discover.  --Mark Twain

Sponsors and Supporters:
Team Daiwa        Next Adventure       Kokatat Immersion Gear

Tournament Results:
2008 AOTY 1st   2008 ORC 1st  2009 AOTY 1st  2009 NA Sturgeon Derby 1st  2012 Salmon Slayride 3rd  2013 ORC 3rd  2013 NA Sturgeon Derby 2nd  2016 NA Chinook Showdown 3rd  2020 BCS 2nd   2022 BCS 1st


bsteves

  • Fish Nerd
  • Administrator
  • Sturgeon
  • *****
  • Better fishing through science
  • Location: Portland, OR
  • Date Registered: Feb 2007
  • Posts: 4584
Very nice Mark, I have a version very much like Mickfish's and I'm looking forward to trying it out some more this winter.
“People say nothing is impossible, but I do nothing every day.”

― A.A. Milne, Winnie-the-Pooh


Pelagic

  • Sturgeon
  • *******
  • Location: Oregon City & Netarts
  • Date Registered: Aug 2008
  • Posts: 2469
Nice.. Where does one find Unistrut?  I made mine out of scrap aluminum, but I am not really happy with its "fit" to the yak.  The unistrut looks like a perfect material! I have two fish and dives to get dialed in for river drifting before the main run of fish (steelhead) reach the coastal rivers!
« Last Edit: December 02, 2008, 07:25:04 AM by pelagic paddler »


Spot

  • Administrator
  • Sturgeon
  • *****
  • Cabby Strong!
  • Location: Hillsboro
  • Date Registered: Jul 2007
  • Posts: 5952
Nice.. Where does one find Unistrut?  I made mine out of scrap aluminum, but I am not really happy with its "fit" to the yak.  The unistrut looks like a perfect material! I have two fish and dives to get dialed in for river drifting before the main run of fish (steelhead) reach the coastal rivers!

The 1st thing I thought when I saw that material was "That's the ultimate Erector Set!!!".   ;D

I got lucky and snagged mine from an industrial re-model.  You can however buy it at places like Platt Electric Supply in Portland.  I think you should also be able to find it at plumbing supply stores.  If you don't mind a little extra weight and cost, they make "T-Joints" so you don't have to cut, pound and bend like I chose to.

Twenty years from now you will be more disappointed by the things you didn't do than by the ones you did do. So throw off the bowlines. Sail away from the safe harbor. Catch the trade winds in your sails. Explore. Dream. Discover.  --Mark Twain

Sponsors and Supporters:
Team Daiwa        Next Adventure       Kokatat Immersion Gear

Tournament Results:
2008 AOTY 1st   2008 ORC 1st  2009 AOTY 1st  2009 NA Sturgeon Derby 1st  2012 Salmon Slayride 3rd  2013 ORC 3rd  2013 NA Sturgeon Derby 2nd  2016 NA Chinook Showdown 3rd  2020 BCS 2nd   2022 BCS 1st


SBD

  • Perch
  • ***
  • Date Registered: Dec 2008
  • Posts: 59
Stoked to see so much interest in drift anchors on this site.  I have started making my newest ones out of relatively light steel with enough kick to get the anchor all the way out of the water.  Here is a pic...


SBD

  • Perch
  • ***
  • Date Registered: Dec 2008
  • Posts: 59
Finished and ready for action...


SBD

  • Perch
  • ***
  • Date Registered: Dec 2008
  • Posts: 59
Success...



Spot

  • Administrator
  • Sturgeon
  • *****
  • Cabby Strong!
  • Location: Hillsboro
  • Date Registered: Jul 2007
  • Posts: 5952
Nice set-up SBD!

How much weight are you using?

I found that 10lbs just isn't giving me the bite I need.  How much is too much?
Twenty years from now you will be more disappointed by the things you didn't do than by the ones you did do. So throw off the bowlines. Sail away from the safe harbor. Catch the trade winds in your sails. Explore. Dream. Discover.  --Mark Twain

Sponsors and Supporters:
Team Daiwa        Next Adventure       Kokatat Immersion Gear

Tournament Results:
2008 AOTY 1st   2008 ORC 1st  2009 AOTY 1st  2009 NA Sturgeon Derby 1st  2012 Salmon Slayride 3rd  2013 ORC 3rd  2013 NA Sturgeon Derby 2nd  2016 NA Chinook Showdown 3rd  2020 BCS 2nd   2022 BCS 1st


SBD

  • Perch
  • ***
  • Date Registered: Dec 2008
  • Posts: 59
7-10 pounds.  Try more scope if its not biting. And shape is a factor.  The first anchor I made a few years ago was 10 pounds of lead molded in a soup can...disaster...it just rolled downstream!


bsteves

  • Fish Nerd
  • Administrator
  • Sturgeon
  • *****
  • Better fishing through science
  • Location: Portland, OR
  • Date Registered: Feb 2007
  • Posts: 4584
Welcome Sean,

I have to say, I kind of miss your old NCKA moniker.. "SCWAfish".   I caught the complete report on NCKA and enjoyed all of the fish porn so I'm sharing the link to it for others to enjoy as well.

http://www.norcalkayakanglers.com/index.php/topic,15551.0/topicseen.html

The T11 is looking like a great little river boat and I think I should see if can't still pick one up before the steelhead season is over.

Brian
“People say nothing is impossible, but I do nothing every day.”

― A.A. Milne, Winnie-the-Pooh


ZeeHawk

  • Administrator
  • Sturgeon
  • *****
  • Sauber is my co-pilot.
  • Location: Seattle, WA
  • Date Registered: Sep 2006
  • Posts: 5506
Hey SBD, good to see you over here on NWKA bruddah.

Z
2010 Angler Of The Year
2008 Moutcha Bay Pro - Winner
Jackson kayaks, Kokatat, Daiwa, Werner Paddles, Orion, RinseKit, Kayak Academy


SBD

  • Perch
  • ***
  • Date Registered: Dec 2008
  • Posts: 59
Quote
"SCWAfish"

I hear ya, but I'm not there anymore and it always confused folks...its funy that everyone knows what SBD means.


INSAYN

  • ORC_Safety
  • Sturgeon
  • *
  • **RIP...Ron, Ro, AMB, Stephen**
  • Location: Forest Grove, OR
  • Date Registered: Aug 2008
  • Posts: 5417

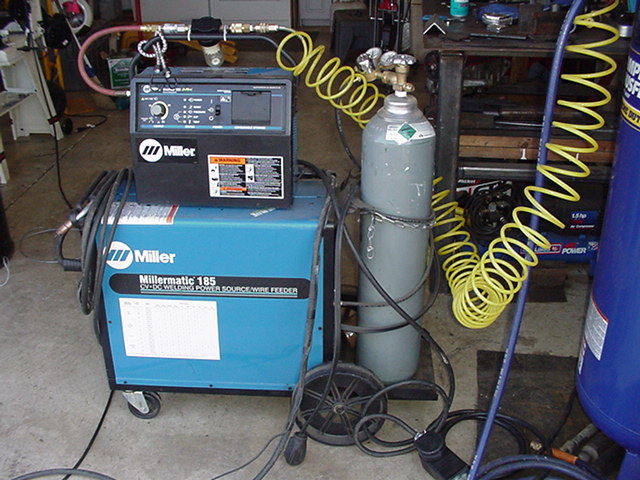

Spot and anyone else local to me that plans to use the Unistrut or similar material, and want a solid permanent attachement at the "T" joint, just let me know.  I have da tools to get're done!  I can also very easly make that notch with my plasma cutter in seconds.



"If I was ever stranded on a beach with only hand lotion...You're the guy I'd want with me!"   Polyangler, 2/27/15


SBD

  • Perch
  • ***
  • Date Registered: Dec 2008
  • Posts: 59
Thanks Z, I saw all the anchor stuff and i realized these are my kind of people!!

Very sweet setup insayn!


Spot

  • Administrator
  • Sturgeon
  • *****
  • Cabby Strong!
  • Location: Hillsboro
  • Date Registered: Jul 2007
  • Posts: 5952
Spot and anyone else local to me that plans to use the Unistrut or similar material, and want a solid permanent attachement at the "T" joint, just let me know.  I have da tools to get're done!  I can also very easly make that notch with my plasma cutter in seconds.


Thanks for the offer!  I think I'll probably take you up on this.

Maybe we can collaborate on a design for our Tridents also.....
